Introduction

This document outlines common example designs illustrating how to use XertifiedHide & Protect. Choose a design that best fits your needs and proceed to the installation guides. For details about each component, please refer to their respective guides under "What is XoT Technology".

All setups using XoT technology require an XoT Management System (XMS). If you do not have an XMS installation, Xertified can provide one for you, or you can install one yourself using the XMS installation manual.

To configure your XoT you must have access to one or more XoT-Locks, depending on the setup. You can either use the Xertified S1 devices, or install an XoT on an x86 system of your choice.

Communication requirements

Here is a quick look at the TCP/IP and UDP/IP ports that are required for operation. The arrows depict IP traffic and the direction of session setup for any firewall configuration.

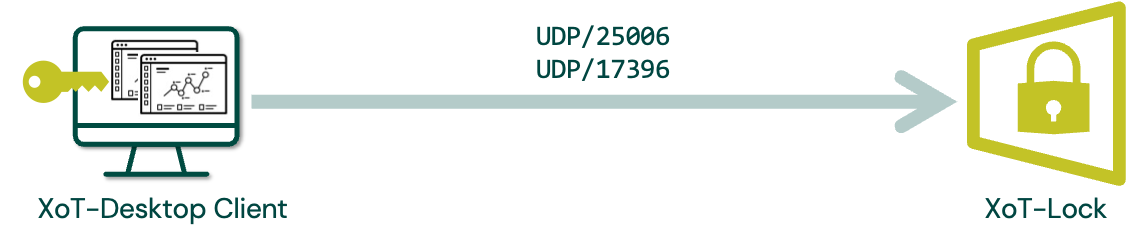

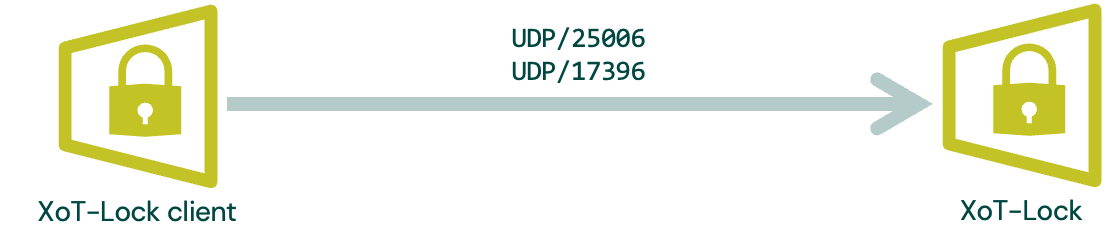

The client to XoT-Lock

These ports are default and can be altered in the XMS system under each XoT-Lock if required.

XoT components to XMS

The XMS requires two IP addresses. One is used for HTTPS endpoints and one for MQTT, which is shown below.

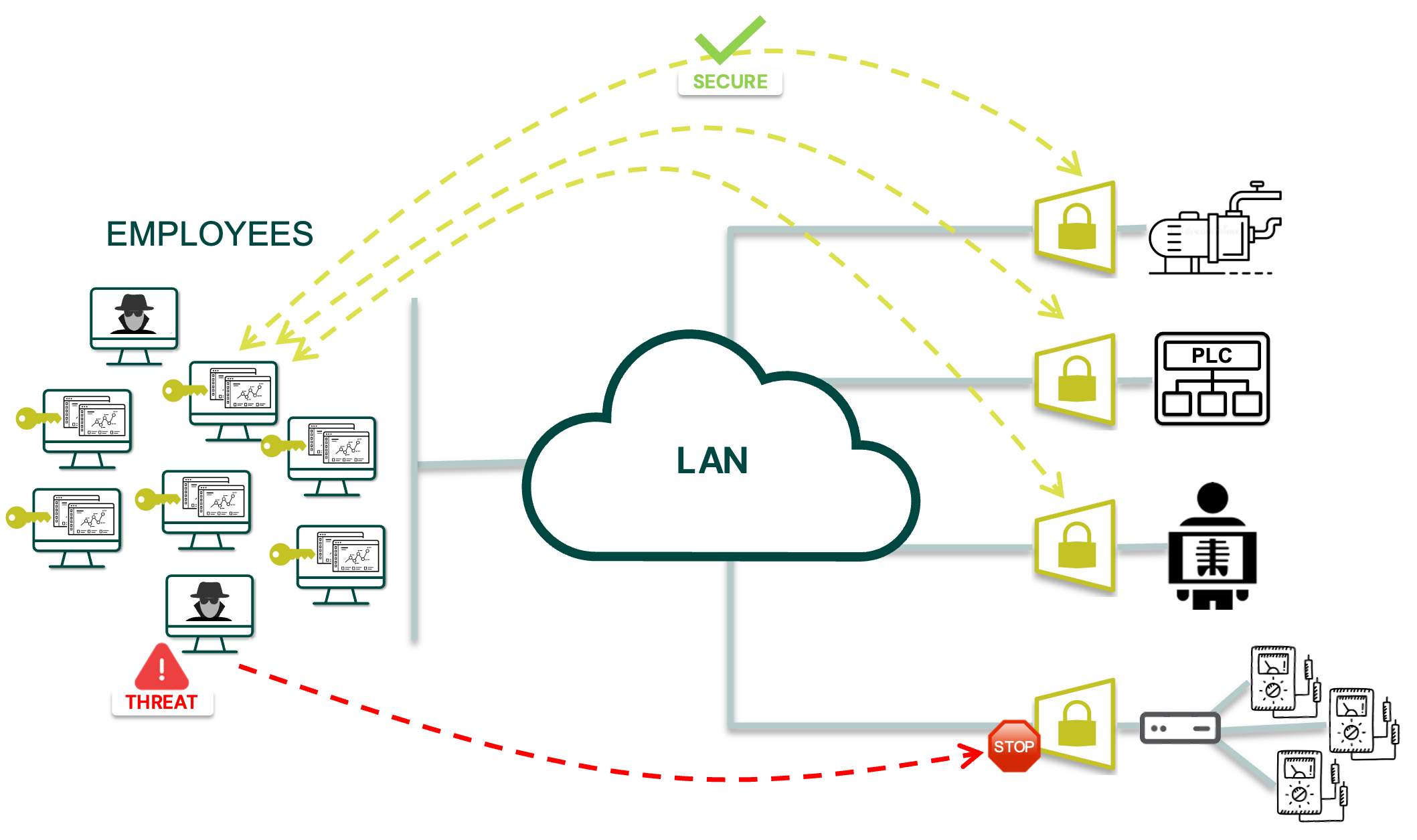

Hide & Protect configuration examples

The deployment examples below assume that there is IP communication between the XoT clients and the XoT-Locks. The TCP and UDP ports needed for this communication are shown in the diagrams above.

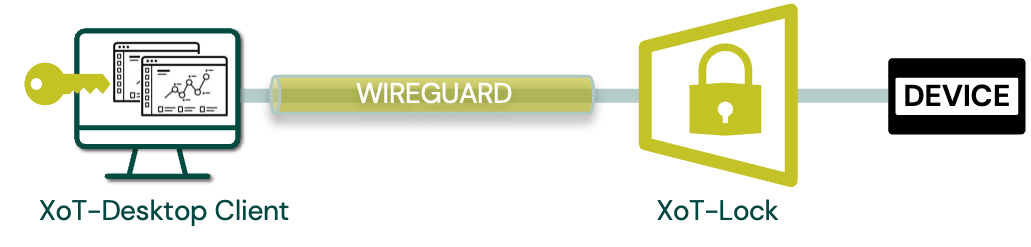

PC client communicates with a single device

The XoT-Desktop client is installed on a PC and connects to a device through an XoT-Lock with a device asset assigned. The device keeps its subnet membership in this mode of operation.

Prerequisites

  • Admin access to an XMS installation
  • Access to an XoT-Lock
  • A client system with the XoT-Desktop client installed and configured with a user present in the XMS
  • A device that can be connected to the protected side of the XoT-Lock

Setup guide

  1. Connect the external side of the XoT-Lock you want to use to a network that has access to the XMS.
  2. Enroll the XoT-Lock if it is not already enrolled in the XMS.
  3. Make sure the XoT-Lock has a reasonable classification: Device type, group, and location settings that can later be targeted by a policy. This can be edited by navigating to the XoT under devices and clicking on the Access control tab.
  4. Put a device of your choosing on the protected side of the XoT-Lock. Make sure this device exposes some sort of service that you can use to test access (e.g., HTTP/HTTPS/SSH/RDP).
  5. Assign a device asset to the XoT-Lock in XMS. Configure addressing (DHCP or static IP) as needed.
  6. Create a policy which:
  7. Source: Type is set to a User Group which your client user belongs to.
  8. Destination: Device Type, Device Group and location settings match the classification of your XoT-Lock.
  9. How: The services you want to access are added to the Services list.
  10. Connect the client system to a network from which it can reach both the XMS and the external side of the XoT-Lock.
  11. Start the XoT-Desktop client and make sure that the user is selected in the top left dropdown.
  12. If everything has been set up correctly, the client will now get access to the device that is placed on the protected side of the XoT-Lock. You will see the status of this connection in the XoT-Desktop client.

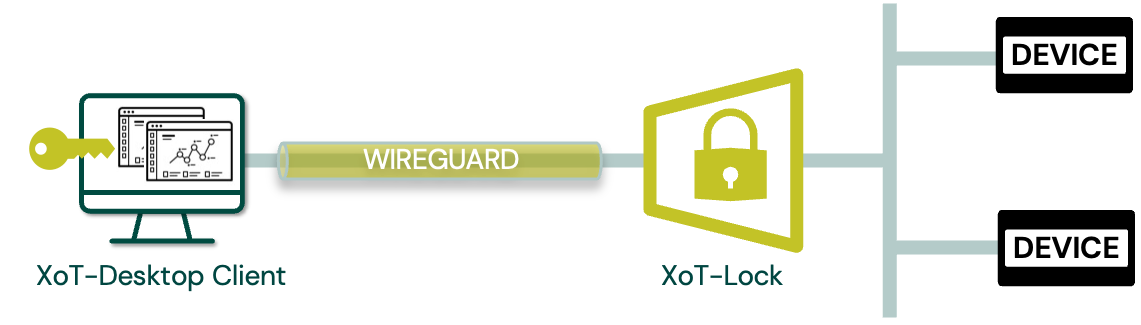

PC client communicates with multiple devices

The XoT-Desktop client is installed on a PC and connects to multiple devices through an XoT-Lock with a subnet asset assigned. The network(s) behind the XoT-Lock are defined as subnets in XMS. VLANs are supported with multiple subnets as required.

Prerequisites

  • Admin access to an XMS installation
  • Access to an XoT-Lock
  • A client system with the XoT-Desktop client installed and configured with a user present in the XMS
  • At least two devices that can be connected on the protected side of the XoT-Lock and a switch so that you can connect both of them
  • (Optionally) a DHCP server for the protected subnet, to give IPs to your protected devices

Setup guide

  1. Connect the external side of the XoT-Lock you want to use to a network that has access to the XMS.
  2. Enroll the XoT-Lock if it is not already enrolled in the XMS.
  3. Make sure the XoT-Lock has a reasonable classification: Device type, group, and location settings that can later be targeted by a policy.
  4. Put both devices in a switch that is connected to the protected side of the XoT-Lock. Make sure the devices expose some sort of service that you can use to test access (e.g. HTTP/HTTPS/SSH/RDP).
  5. Either set static IPs for your devices on the same subnet, or have them get their IP settings from a DHCP server you have set up on the protected subnet.
  6. Assign a subnet asset to the XoT-Lock in XMS. Configure subnet addressing, DHCP, and VLANs as needed.
  7. Create a policy which:
    • Source: Type is set to a User Group which your client user belongs to.
    • Destination: Device Type, Device Group and location settings match the classification of your XoT-Lock.
    • How: The services you want to access are added to the Services list.
  8. Connect the client system to a network from which it can reach both the XMS and the external side of the XoT-Lock.
  9. Start the XoT-Desktop client and make sure that the user is selected in the top left dropdown.
  10. If everything has been set up correctly, the client will now get access to the devices that are placed on the protected side of the XoT-Lock. You will see the status of this connection in the XoT-Desktop client.

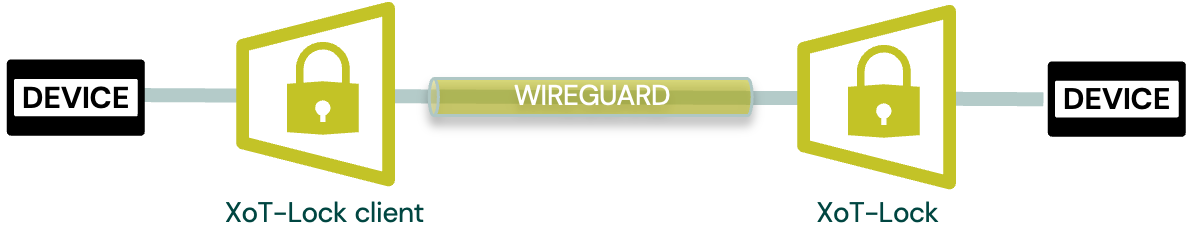

Device communicates with a single device

A device communicates to another device through two XoT-Locks, each with a device asset assigned. Both devices retain their subnet membership in this mode of operation. No XoT client software is installed on the devices; the XoT-Locks themselves handle the encrypted tunnels between each other.

Prerequisites

  • Admin access to an XMS installation
  • Access to 2 XoT-Locks
  • A client system with the XoT-Desktop client installed and configured with a user present in the XMS
  • At least two devices that can be connected to the protected side of each XoT-Lock

Setup guide

  1. Connect the external side of both XoT-Locks you want to the same network, which also has access to the XMS.
  2. Enroll both XoT-Locks if they are not already enrolled in the XMS.
  3. Make sure the XoT-Locks have reasonable classifications: Device type, group, and location settings that can later be targeted by a policy.
  4. Put a device on the protected side of each XoT-Lock.
  5. Assign a device asset to each XoT-Lock in XMS.
  6. Create a policy where:
  7. Source: Type is set to Protected Device and the device classification matches one of your XoT-Locks.
  8. Destination: Type is set to Protected Device and the device classification matches the other XoT-Lock.
  9. How: The services you want to enable access for are added to the Services list.
  10. You should now have access from the device behind the XoT-Lock specified in your Source to the device specified in Destination. If you want to enable communication in both directions, create a second policy with source and destination swapped.

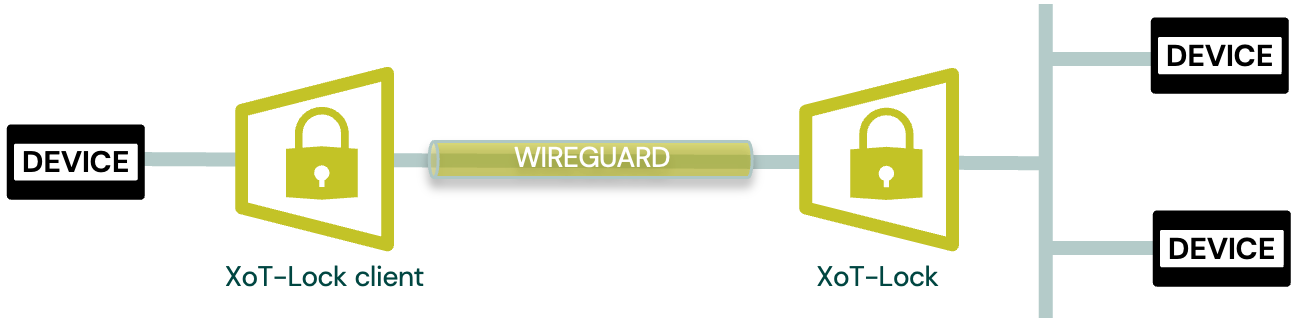

Device communicates with multiple devices

A device communicates from an XoT-Lock with a device asset assigned to one or more devices behind an XoT-Lock with a subnet asset assigned. No software is installed on the devices.

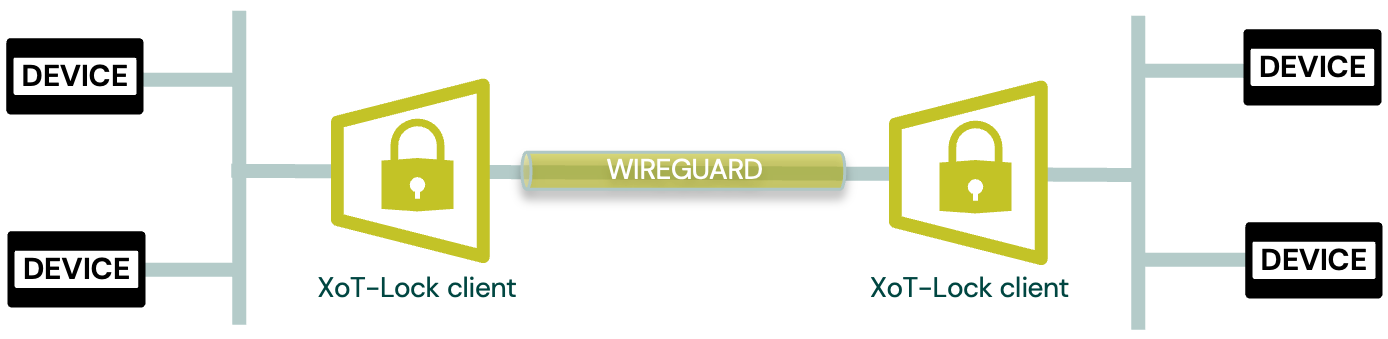

Multiple devices communicate with multiple devices

Devices behind one XoT-Lock with a subnet asset assigned communicate with devices behind another XoT-Lock with a subnet asset assigned. The networks on both sides of the XoT-Locks are subnets that need to be configured in XMS. VLANs are supported with multiple subnets as required. No software is installed on the devices.

Prerequisites

  • Admin access to an XMS installation
  • Access to 2 XoT-Locks
  • A client system with the XoT-Desktop client installed and configured with a user present in the XMS
  • Several devices that can be connected to the protected side of each XoT-Lock
  • (Optionally) DHCP servers on the protected subnets, to give IPs to your protected devices

Setup guide

  1. Connect the external side of both XoT-Locks you want to the same network, which also has access to the XMS.
  2. Enroll both XoT-Locks if they are not already enrolled in the XMS.
  3. Make sure the XoT-Locks have reasonable classifications: Device type, group, and location settings that can later be targeted by a policy.
  4. Put at least one device on the protected side of each XoT-Lock.
  5. Either set static IPs for your devices on the same subnet, or have them get their IP settings from a DHCP server you have set up on the protected subnet.
  6. Assign subnet assets to both XoT-Locks in XMS.
  7. Create a policy where:
  8. Source: Type is set to Protected Device and the device classification matches one of your XoT-Locks.
  9. Destination: Type is set to Protected Device and the device classification matches the other XoT-Lock.
  10. How: The services you want to enable access for are added to the Services list.
  11. You should now have access from the devices on the subnet behind the XoT-Lock specified in your Source to the subnet behind the XoT-Lock specified in Destination. If you want to enable communication in both directions, create a second policy with source and destination swapped.
